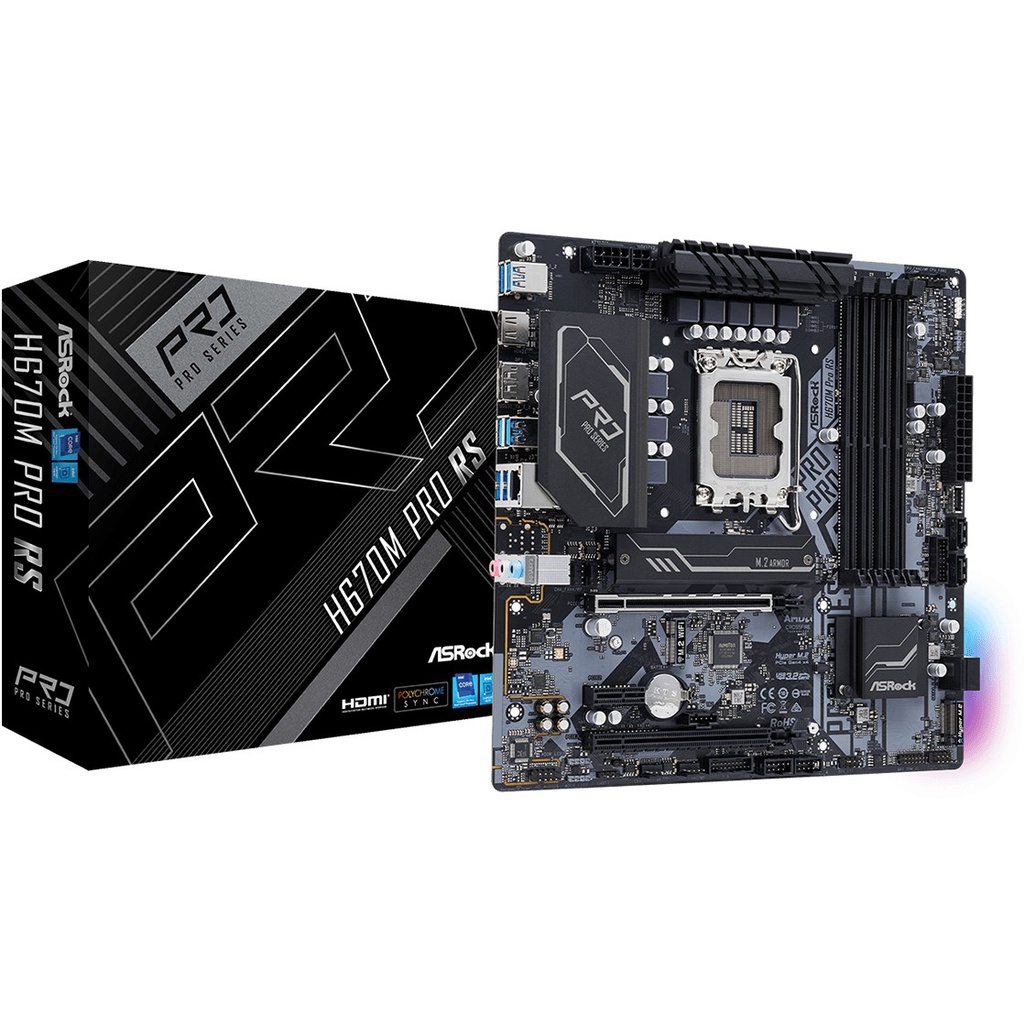

ASRock H670M PRO

Form Factor Micro-ATX (µATX)
(UEFI) Bios	UEFI
Moederbordchipset Intel H670
Geheugentype (moederbord) 4x DDR4
Maximum grootte werkgeheugen 128GB
Hardeschijf bus (intern)	M.2 (PCI-e 4.0 x4 + SATA), M.2 (PCI-e 4.0 x4), 4x SATA-600
Aantal gekoelde M.2 slots	1x
Raid-modi 0, 1, 5, 10
Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
*Requires additional M.2 NVMe expansion cards to support RAID 5
Uitbreidingsslots	M.2, PCI-e 3.0 x1, 2x PCI-e 4.0 x16
Totaal PCI-e x16	2x
- 1 x PCIe Gen3x1 Slot
- Supports AMD CrossFire™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
*Supports NVMe SSD as boot disks
Link Interface AMD Crossfire
Ethernet (RJ45) Ethernet 1Gbps
Netwerkcontroller	Intel I219V
Netwerkcontroller(s)	Intel I219V
USB/TB intern	Thunderbolt 4 header, 2x USB 2.0 header, 2x USB 3.2 (Gen1, 5Gb/s) header, USB 3.2 (Gen1, 5Gb/s) type-c
USB/TB extern	4x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A
Video uit	DisplayPort, HDMI
Hoogste HDMI versie	HDMI 2.1
Hoogste DisplayPort versie	DisplayPort 1.4
Overige aansluitingen	TPM header
CPU fan headers	2x 4-pins
Case fan headers	4x 4-pins
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.
DC voedingsconnector	Nee
Geïntegreerd I/O-shield	Nee
Audio kanalen	8 (7.1)
Audio-aansluitingen	2x Analoog (uitgang), Microfoon (ingang)
Audiochip	Realtek ALC897
Type stroomvoorziening Powerstages
VCore-powerstages 50A
Vrm-koeling Passief (heatsink)
Vrm-opmerkingen	- 1 x SPI TPM Header
LED verlichting	Ja
LED kleur	Multi-color
RGB-headers	3x 3-pins (ARGB), 4-pins (RGB)
